Through Hole Drum Core DIP Type Power Inductor
| Подробности Упаковки: | Carton packing |
|---|---|
| Способность поставки: | 18000000000000 |
| Порт: | Shanghai ,Ningbo Guangzhou ,Shenzhen |
Базовая информация
Модель: 6X8,8X10,
Описание продукта

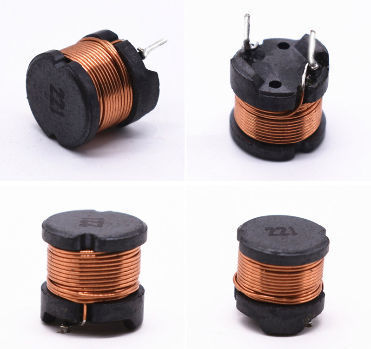

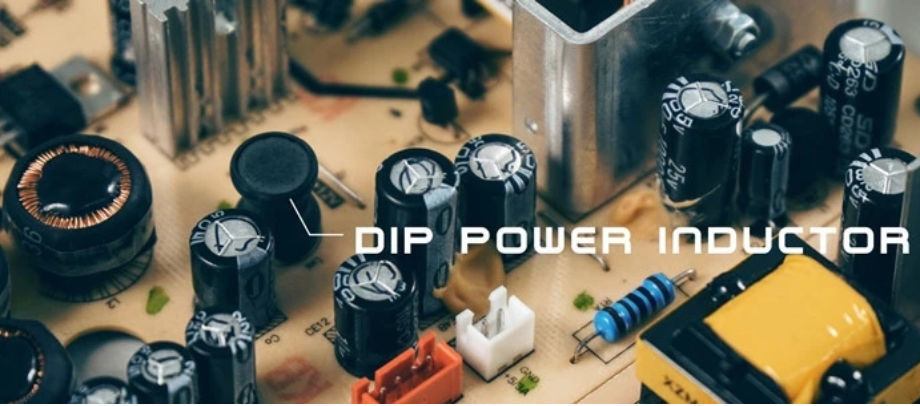

Through Hole Drum Core DIP Type Inductor
Components : Ferrite core, Copper wire;Tube,Lead wire
Core : Ferrite core-NiZn
Wire : Enameled copper wire-UEW/PEW
Tube : UL heat-shrinkable tube/PVC
Lead wire : Tinned copper wires
Glue : Epoxy Resin
Functions
Energy Storage; Filtering; Voltage Step-up; ResonanceCoil Structure
Drum type; Tubby typeCharacteristics
Working Frequency Range Above 1KHZ
Inductance Range 1uH-1H
DCR Range unknown-Depend on customers' request
Storage Temperature -20℃ to +85℃
Working Temperature -20℃ to +105℃
Storage Humidity 30% to 95%
Available in E12 Series
Small diameter of only 5.8 mm maximum
Profile of 4.8 mm
Test Items
Turns Ratio
Inductance
DC resistance test
Safety test
Current test
Applications
1. Digital Products:Digital camera ETC2.Household Appliance:washing machine,air condition,air purifier,coffee maker, bread maker ETC
3. Security products:Camera,Voice recording equipment,memory device,infrared devices,alarms ETC
4.Switching power supplies for portable communication equipment, LCD TVs, car radios, camcorder, UPS ETC
5.Lighting industrial: LED drivers
6.Auto electronics: Navigator,Data recorder, Car charger ETC
7.Toys:electric toys, remote controller ETC
8.Motors
9 Input / output of DC/DC converters
Packaging
1500 pcs. per reel
|

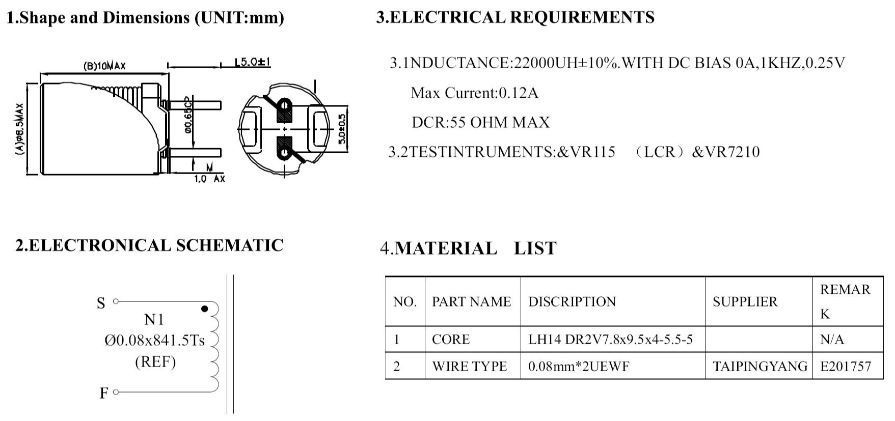

ELECTRICAL CHARACTERISTICS |
||
|
NO. |
Parameter |
Specification |
|
1 |
Inductance |
1uH-1H |
|
2 |
DC Resistance |
mΩ MAX |
|
3 |
HI-POT |
AC 0.6KV, 5mA/ 1SEC
|
|
4 |
Insulation Resistance |
DC 500V, 100M OHM MIN. |
|
PART MATERIAL IDENTIFICATION |
|||
|
NO. |
ITEM |
MATERIAL |
|
|
1 |
Insulation System |
CLASS 130(B) VIKING |
|
|
2 |
Core |
DR2W8*10 K6 |
|
| 3 |
Bobbin |
T375J |
|
|
4 |
Wire |
THS4-U130 MW75/2UEW-130 |
POLYURETHANE ENAMELLED COPPER MW28 |
|
5 |
Tube |
UL F2(Z) |
TEFLON TEF-TW-300 |
| 6 |
Tape |
PZ |
|
| 7 |
Triple Wire |
TRWB |
|
Features:
1. Shielded and unshielded types available
2. Ferrite bobbin core, low core loss at frequency
3. High reliability and efficiency
4. Small size
5. Winding covered with shrinkable tube
6. Magnetic shielding, used in high-density mounting configurations
7. Excellent Q-frequency characteristics
8. High withstanding voltage and insulation resistance
9. Operating temperature: -20 to 105oC
required, place of origin,etc)you are welcome to ask us.
|
Item
|
Specifications
|
Measuring Conditions
|
Measuring Instrument
|
|
Inductance
|
1mH ± 5% Within
|
1KHz/0.25V
|
TH2816B
|
|
Size
|
10mm*10mm
|
25℃
|
VR131
|
|
I.D.C
|
3 A MAX
|
1KHz/0.25V
|
TH2816B&VR7210
|
A: We are a customized factory.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Yes, Small quantity for trial order is available.
